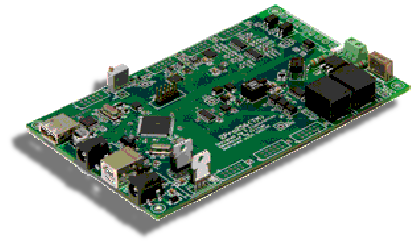

Professional/Educational Board using ATMega2560

ZPro2560

This is for professionals as well as schools and the serious amateur. Analog measurements, digital & analog control, serial communication. All interconnected and driven by included software/drivers. PC App in VB.NET to control most of the board included.

Save time, start developing your application, not your board.

Use the free Atmel Studio 4 or Studio 6 to load and debug your own applications.

The board contains:



•  ATMega2560 processor

•  Dual output 16 bit DAC with up to 5V output

•  Access to USB memory stick using internal UART

•  Serial comm with a PC using USB via internal UART

•  1 unassigned UART available on I/O pins



•  6 channel 24 bits external ADC

•  5 channel 10 bits internal ADC with buffered inputs and user selectable gain on each channel

•  4 channel 10 bits internal ADC with unbuffered inputs

•  1mA Current Source (trimmable to high precision)



•  3 axis MEMS acceleration sensor

•  Pressure sensor for 500-1150 mbar (atmospheric pressure)

•  PowerON reset circuit

•  OnBoard main Crystal of 10Mhz

•  Secondary Crystal of 32768HS for timing purposes

•  34 digital IO pins on 2x5 IDC connectors incl Vcc
and GND



•  Modular board design for add-on boards

•  +7,5DC Power Input & Output to other boards

•  JTAG Connector for easy debugging

•  ESD protected Reset Input





•  On board SPI Flash memory of 64Kbytes

•  2C available on IO Connector

•  2 Optoisolated Digital Inputs & 2 Outputs

•  1 Optoisolated ZVT controlled Triac for AC motor applications

•  Opto isolated RS485 half duplex bus using internal UART

•  4-layer board for optimum EMI & EMC performance



•  Board size: 160 x 100 mm
